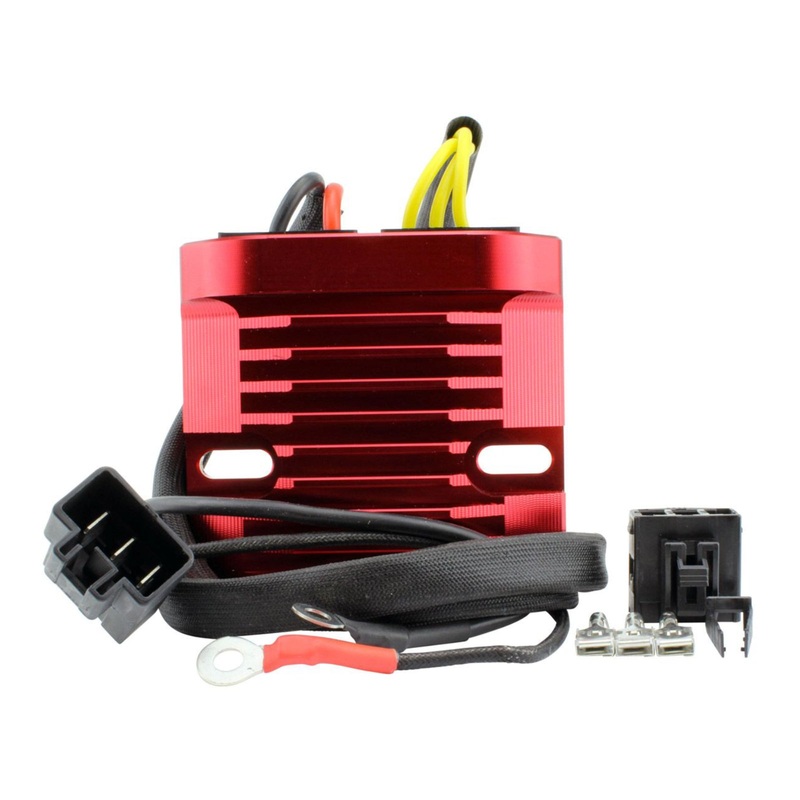

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment
• All products shipped are tested

RMSTATOR have included the opposite connector (main harness side) as they know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

Dimensions:

• Width: 38 mm
• Length: 57 mm
• Height: 19 mm
• Wires length: 122 mm

Other specifications:

• Number of plugs: 1
• Number of pins: 4
• Number of wires: 4
• Minimum Charging Voltage: 14.5V +- 0.5V
• Maximum Charging Current: 50A/500W
• Open Circuit Voltage: 15V
• Operation Temperature: -20 to 85

NOTE:Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery.Always fully charge your battery before performing any charging system tests or replacing parts.If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
